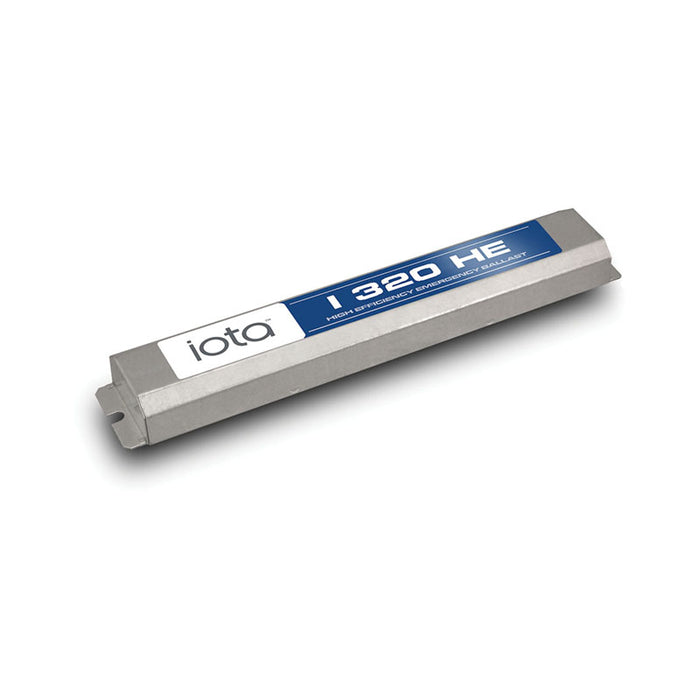

IOTA I320 HE M20 Reduced Profile Emergency Ballast, High Efficiency

The I320 HE from IOTA Engineering is a UL Listed emergency ballast that allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the I320 HE switches to the emergency mode and operates one of the existing lamps for 90 minutes.

Features

• Wattage: 3.7W
• Voltage: 120-277V
• Lumens: 1350
• Lamps Operated: Most 2′-4′ single, bipin T8 HO and VHO and 2′-4′ 14W to 54W T5 fluorescent lamps
• Battery: 24 Hour Recharge
• Long life high temperature recyclable Ni-Cad battery
• Emergency Operation:  2′-4′ 90 minutes
• Reduced Profile design is ideal for smaller ballast compartments
• AC Output for compatibility with low mercury content amalgam lamps
• Time Delay feature for compatibility with End-of-Lamp-Life circuitry
• Galvanized steel case
• Includes test switch and charge indicator accessory kit
• For use with switched or unswitched fixtures

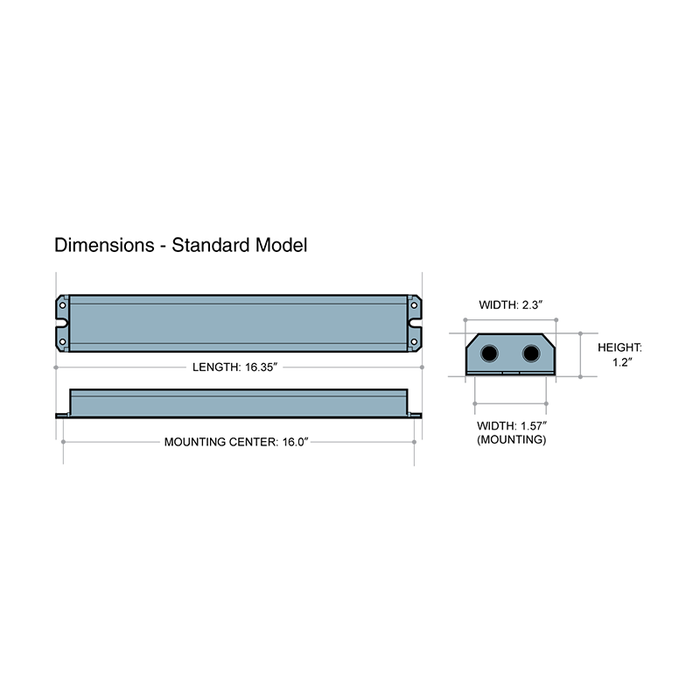

Dimensions

• Length: 16.35"
• Width: 2.3"

• Height: 1.2"
• Weight: 3 lbs

Warranty

• 5-year warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• UL Listed for Field and Factory Installation
• CA T20 Appliance Efficiency Database
• Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
• RoHS Compliant
