Greengate ONW-D-1001-DMV-N NeoSwitch Dual Tech/Dual Relay Occupancy Sensor Wall Switch (Neutral Required)
SKU ONW-D-1001-DMV-N-W
Original price
$0.00
-
Original price
$0.00
Original price
$180.90
$180.90
-
$180.90
Current price
$180.90
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
The Dual Technology Dual Relay Occupancy Sensing Wall Switch is a motion sensing lighting control and conventional wall switch all-in-one that is used for energy savings and convenience. The unit contains two relays that allow the control of two separate loads. The ONW-D-1001-DMV-N combines Ultrasonic (US) and Passive Infrared (PIR)sensor technologies to monitor a room for occupancy to deliver maximum energy savings and ensure the greatest sensitivity and coverage for tough applications without the threat of false triggers.
Features
- Color: White
- Technology: Passive Infrared (PIR) and Ultrasonic (US) technology
- Voltage: 120/277V
- Coverage: 180°, 1000 sq. ft.
- Light Level Sensing: 0 to 200 foot-candles
- Housing: Durable, injection molded housing
- Air-gap switch ensures no leakage current to load
- Selectable built-in light level sensor
- Additional pushbutton with light/fan graphic included
- The sensor includes self-adaptive technology that continuously self-adjust sensitivity and time delay in real-time, maximizing the potential energy savings that are available in the particular application

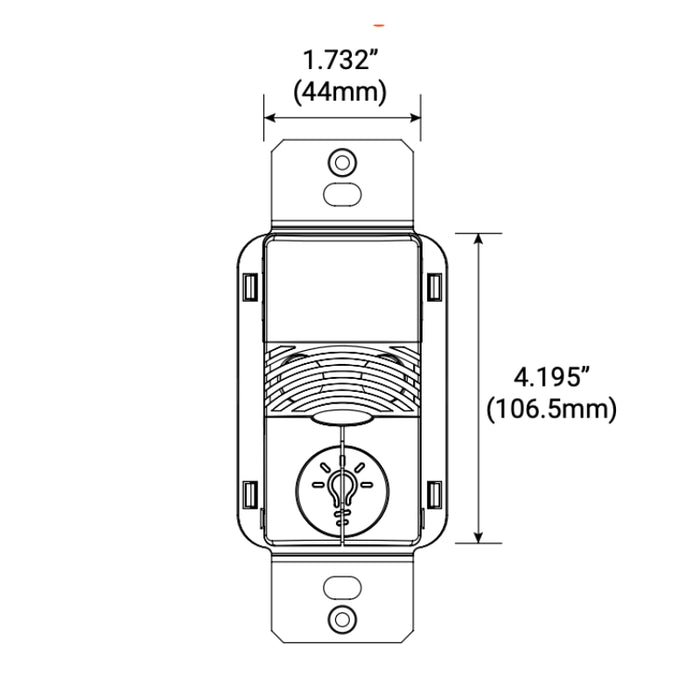

Dimensions
- Product Mounting Plate/Strap: 4.2"H x 1.73" W
- Product Housing Dimensions: 2.62" H x 1.75" W x 1.9" D
Warranty
- 5-Year Limited Warranty
Documents
Labels and Listings
- cULus Listed - Energy Management Equipment (UL916)
- FCC Compliant
- RoHS Compliant
