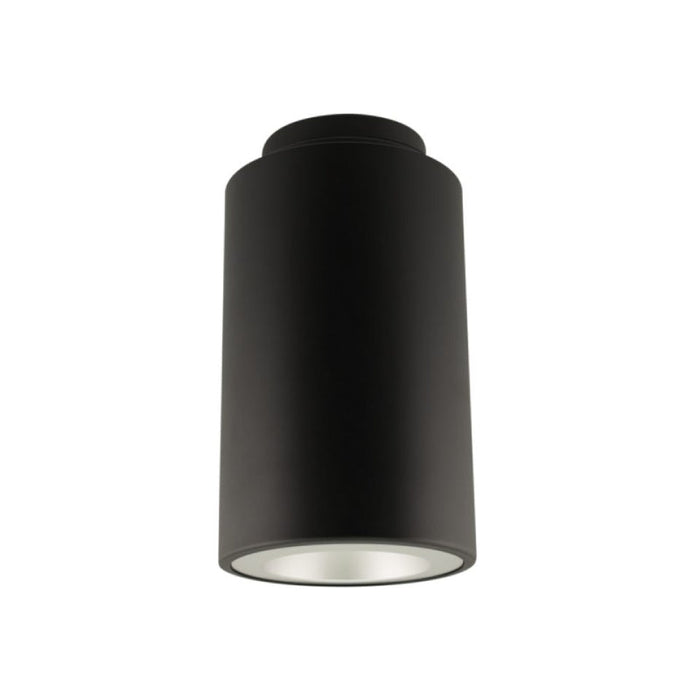

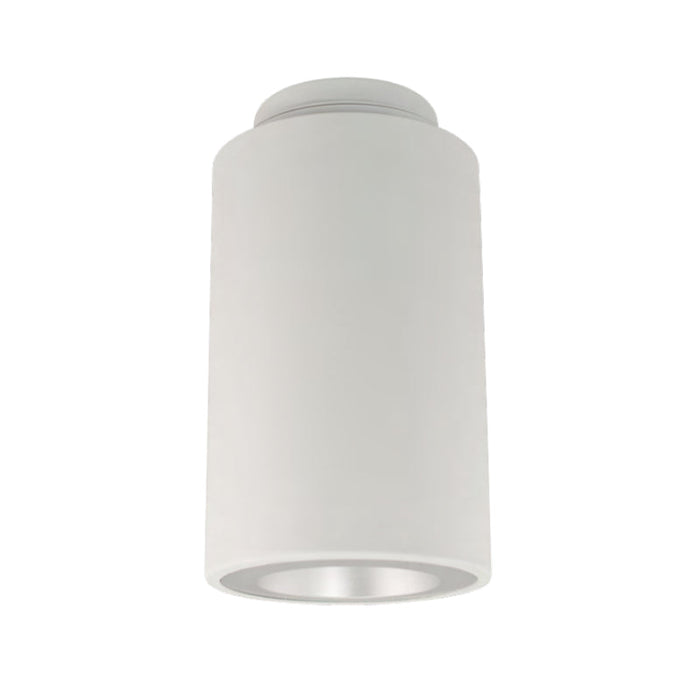

Halo Commercial HCC6S35 6" 34.6W LED Surface Mount Cylinder, 3500 Lumens, 120-277V

Features

• LED Module and Reflector sold separately
• Complete installation = Cylinder + LED Module + Reflector
• Size: 6"
• Finish: Matte White, Matte Black
• Wattage: 34.6W
• Voltage: 120-277V
• Lumens: 3500
• Driver: 0-10V 1%-100% dimming at 120-277V on 0-10V controls
• Mounting: Surface Mount
• Round seamless spun aluminum housing
• Included cylinder mounting plate installs to ceiling junction box (supplied by others), and the surface cylinder mounts to the plate with easy twist and lock hooks

Compaitable Accessories (Sold Separately):

• LED Module - HM6C
• Reflector - Conical Reflector , Baffle Reflector
• Aircraft Cable Kit - HCAC

Dimensions

• Width: 8.25"
• Height: 13.56"

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Certified to UL 1598 / Canada C22.2 No. 250.0
• Suitable for damp and wet locations in covered ceilings only
• Wet location models are IP65 rated (wet location and IP65 not applicable with wall wash reflector which is damp location)
• Contains no mercury or lead and RoHS compliant May be used to comply with State of California Title 24 non-residential code, as a dimmable LED luminaire
• ENERGY STAR certified
