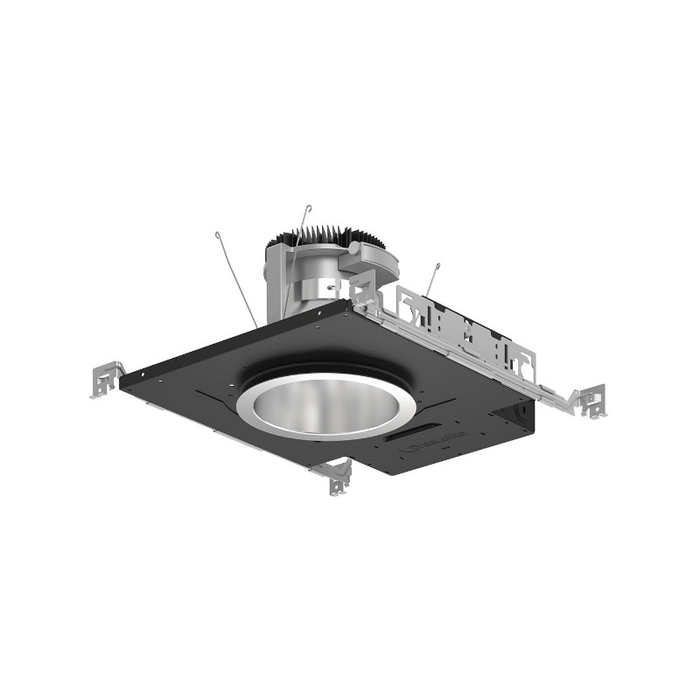

Prescolite LTR-6RD-H LITEISTRY 6" 12W Round LED New Construction Downlight Housing

LITEISTRY™ offers a broad palette of architectural downlighting solutions with consistent aperture appearance, quiet ceiling design, and optical performance.

Features

• Trim sold separately
• Wattage: 12W

• Voltage: 120-277V

• Lumen Package: Standard Lumen
• Lumens: 1000

• 0-10V dimming to 1%
• Non-IC
• Painted black durable steel platform with pre-installed bar hangers

• Optical grade silicone lens integral to light engine
• Pre-wired junction box with snap-on covers for easy access
• Snap-in connection from driver compartment allows easy installation

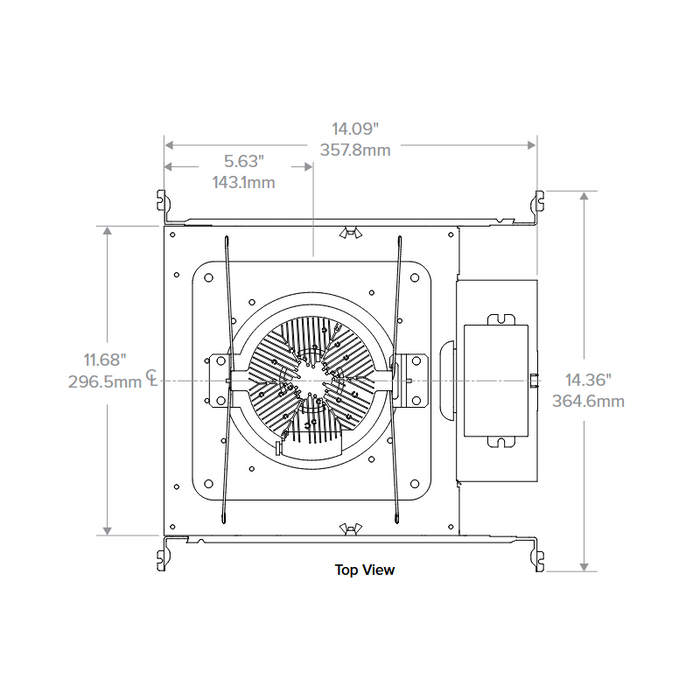

Dimensions

• Aperture: 6"
• Length: 14.56"
• Width: 14.36"
• Height: 5.9"

• Ceiling Cutout: 6.5"
• Ceiling Thickness: 0.5" - 2"


Estimated Life

• L90 at >55,000 hours (TM-21)

Warranty

• 5 Year Warranty

Documents

• Spec Sheet

• Instruction Sheet

Accessories:

• Bar hangers: B24 (Sold Separately)
