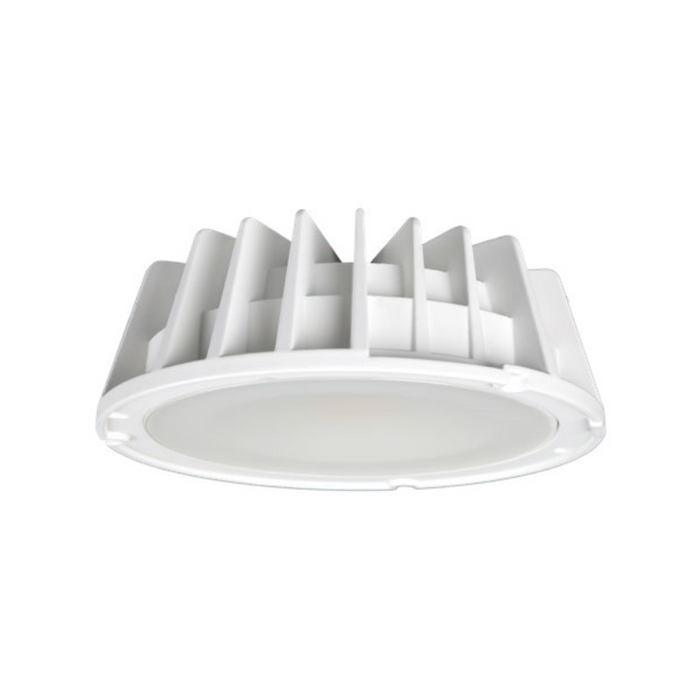

Halo Commercial HM8 8" LED Module, 80CRI

Compatible Reflector & Housing (Sold Separately):

• HC8RD010
• HC8RD010REM14
• HC8RD010REM7
• HC812RD010
• HC812RD010REM7
• HC812RD010REM14
• HC830D010
• HC860D010
• HC820D010REM7
• HC860D010REM7
• 81WD
• 81NDC
• 81RWWBB
• 81RWWHWF
• 81WDWIEM
• 81PSMDW

Features

• LED Module Only. Housing and trim sold separately.
• Recessed Size: 8"

• Color Temperature: 2700K, 3500K, 4000K, 5000K
• Lumens: 500-2000
• CRI: 80
• Integral diffuse lens provides visual shielding
• Integral connector allows quick connection to housing flex

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Certified to UL 1598 / C22.2 No. 250.0, suitable for damp locations and wet locations in covered ceilings only

• IP20 - Above finished ceiling; IP65 - Below finished ceiling
• Airtight per ASTM-E283-04
• EMI/RFI emissions FCC CFR Title 47 Part 15 Class A 120/277V
• Contains no mercury or lead and RoHS compliant

• May be used to comply with State of California Title 24 non-residential code, in Non-IC, as a dimmable LED luminaire
• ENERGY STAR® certified, refer to certified light fixtures database
