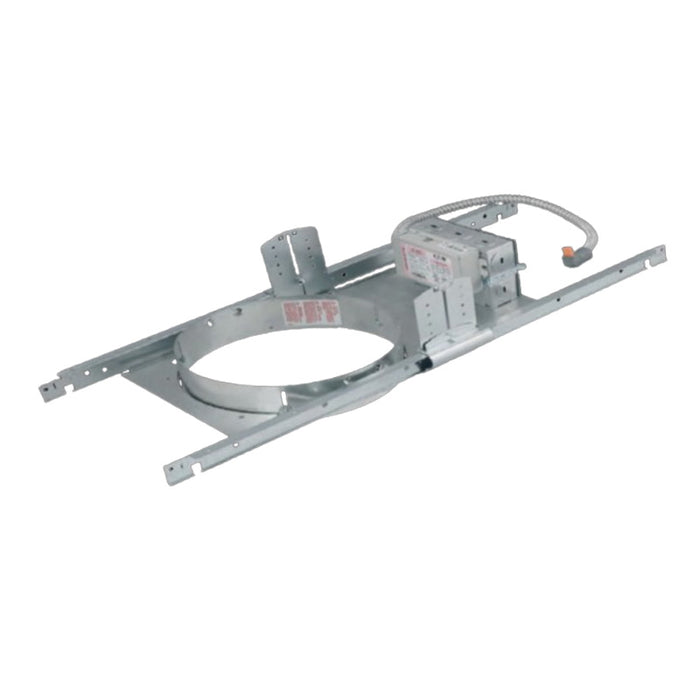

Halo Commercial HC410D010 4" New Construction Downlight Housing, 1000 Lumen

The HC4 recessed 4" downlight is offered with narrow, medium, or wide beam reflectors or wall wash reflector. Installation options include new construction/remodel and retrofit kit.

Compatible Reflector & Module (Sold Separately):

• 41WDBB
• 41NDC
• 42R
• HM4

Features

• Housing Only. A complete luminaire consists of a housing frame, LED module, and reflector (ordered separately)
• Wattage: 10W
• Voltage: 120-277 V
• Color Temperature: Depends on LED Module Selection
• Lumens: 1000 lm
• Dimming: 0-10V 1%-100% dimming at 120-277V on 0-10V controls

Dimensions

• Recessed Size: 4"

• Length: 26.38"
• Width: 8.94"
• Height: 3.42"

Warranty

• 5-Year Limited Warranty

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• cULus Certified to UL 1598 / C22.2 No. 250.0, suitable for damp locations and wet locations in covered ceilings only
• Emergency options provided with UL Listed emergency drivers to UL 924 / C22.2 No. 141, suitable for indoor/damp locations.
• IP20 - Above finished ceiling; IP64 - Below finished ceiling
• Airtight per ASTM-E283-04
• EMI/RFI emissions FCC CFR Title 47 Part 15 Class A at 120/277V
• Contains no mercury or lead and RoHS compliant
• 1,000 and 1,500 lumen, 90 CRI, ICAT models may be used to comply with State of California Title 24 residential code, per JA8 certification standards
• May be used to comply with State of California Title 24 non-residential code as a dimmable LED luminaire
• ENERGY STAR® certified, reference certified light fixtures database
