Halo Commercial HC12R 12" Retrofit Kit with 14W Emergency Battery Backup, 120-277V

Compatible Module & Reflector (Sold Separately):

• HM8

• 81WD
• 81NDC

Features

• Modules and Reflector sold separately
• Complete installation = Retrofit Kit + LED Module + Reflector
• Size: 12"
• Voltage: 120-277V
• Lumens: 1500, 2000, 3000, 4000, 6000, 8000
• Driver: 0-10V 1%-100% dimming at 120-277V on 0-10V controls
• 8.7" retrofit kit for 8.73" to 10.3" nominal ceiling cutout aperture with preinstalled 11.3" O.D. oversized matte white trim ring
• Designed for installation from below the finished ceiling into existing open frame commercial housings

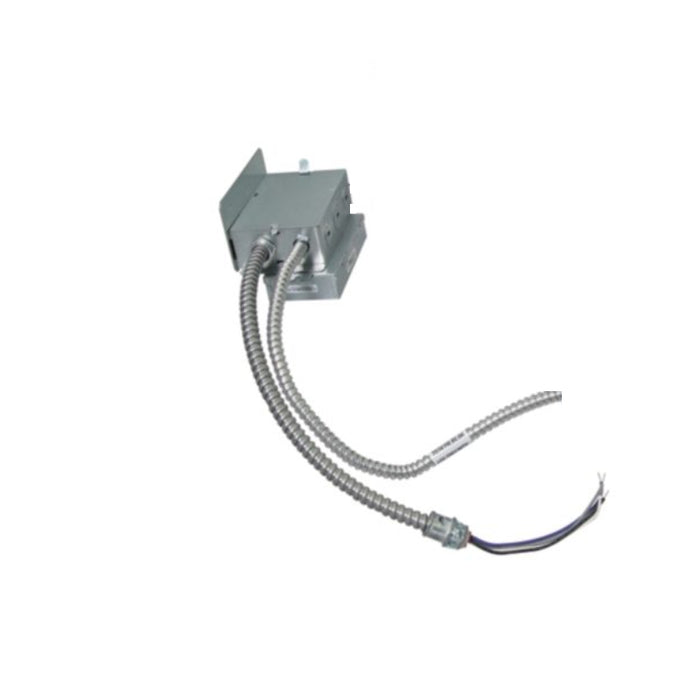

• Kit also includes junction box / driver pack with metallic cable for retrofit wiring
• 14 watt emergency battery pack with remote test / indicator light

Estimated Life

• Passive cooling achieves L70 at 50,000 hours

Warranty

• 5-Year Limited Warranty

Documents

• Spec Sheet
• Instruction Sheet
