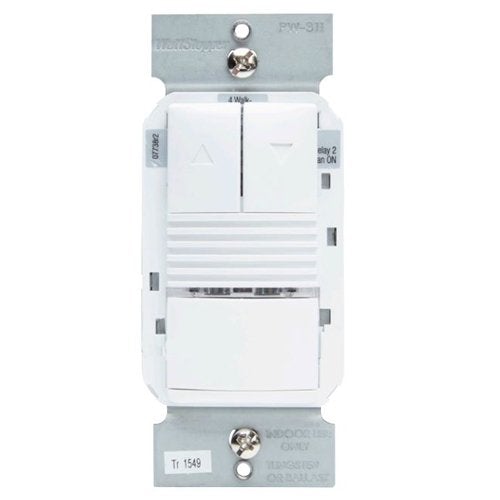

Wattstopper PW-311-U Passive Infrared 0-10 Volt Dimming Wall Switch Occupancy Sensor, BAA/TAA

WattstopperSKU: PW-311-I-U

Color: Ivory
Out Of Stock


The PW-311 is a Passive Infrared (PIR) 0-10V Dimmable Wall Switch Occupancy Sensor. The PW-311 Dual Technology Dimming Wall Switch Sensor can provide outstanding energy control performance by turning lights OFF and ON based on occupancy and allow the user to increase or decrease the lighting levels.


  • Wallplate not included - compatible with decorator styles
  • Finish: Ivory, Red, White
  • Special Features: 0-10V Dimming & Multi-way
  • Voltage: 120/277 VAC; 50/60 Hz
    • 120VAC: 0-1000W ballast, E-ballast, LED, tungsten; 1/4hp motor
    • 277VAC: 0-1200W ballast, E-ballast, LED; 1/4hp motor
  • IR Range On Axis: 525 SqFt
  • Light Output 1FCD: Auto-ON to 50%
  • Time delays: 3, 5, 15 or 30 minutes, walk-through, test-mode
  • Defaults to Manual-ON operation for maximum energy savings
  • Neutral Sense??connection option with break off tab to expose neutral terminals
  • Color-matched lens and low profile for appealing design
  • Supports Partial-ON operation for energy code compliance for incentives
  • Allows fully functional multi-way control for up to four control locations
  • Typical Applications: Small Office, Small Congerence Room, Lunch/Break Rooms
  • BAA/TAA compliant

Spec Sheet
