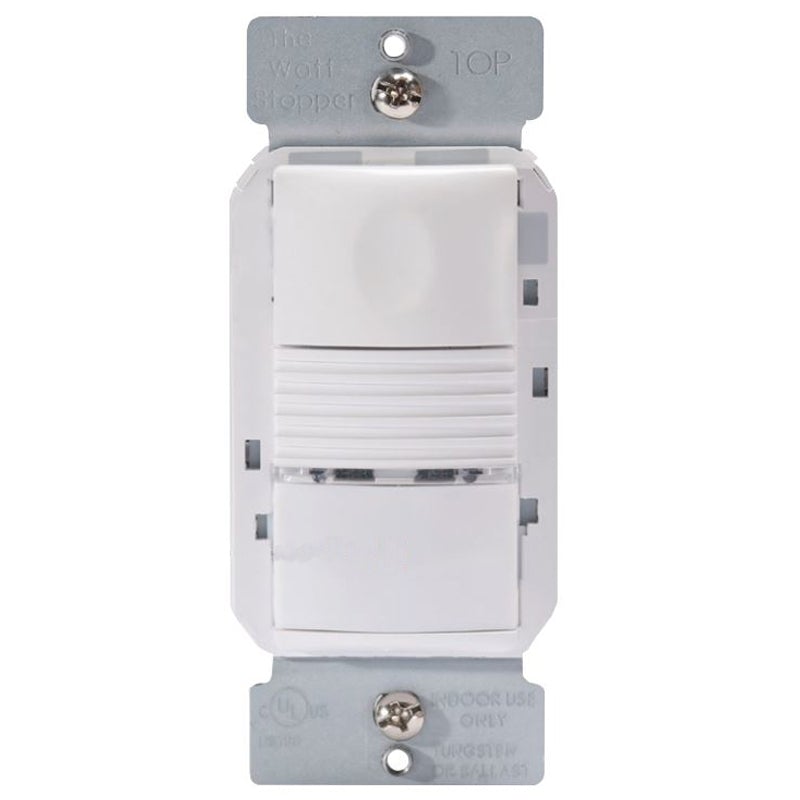

Wattstopper PW-301-U Passive Infrared Wall Switch Sensor, BAA/TAA

WattstopperSKU: PW-301-I-U

Color: Ivory
Out Of Stock


The PW-301 passive infrared (PIR) wall switch sensor can turn lights OFF and ON based on occupancy. It is characterized by high sensitivity to small and large movements, appealing aestherics, and a varity of features.


  • Wallplate not included - compatible with decorator styles
  • Finish: Ivory, White
  • Voltage: 120/277 VAC
  • Load: 0-1000 W 1/4 hp, 0-1200 W 1/4 hp
  • IR Range On Axis: 525 SqFt
  • Light Output 1FC D: Automatic On/Off, Manual On/Off
  • Response Time: 5 to 30 minutes
  • High sensitivity and dense coverage for exceptional performance
  • Color-matched lens and low profile for appealing design
  • Optional neutral connection with break off tab to expose neutral terminals
  • Allows multi-way control from one of up to four control locations
  • Defaults to Manual-ON operation for maximum energy savings
  • Typical Applications: Small Office, Small Conference Room, Lunch/Break Rooms
  • BAA/TAA-compliant


PW-301-I-U, PW-301-W-U

Spec Sheet
