Wattstopper LMIO-201 Analog Sensor Input Module

WattstopperSKU: LMIO-201

In stock (52 units), ready to be shipped


The LMIO-201 Analog Sensor Input Module is a single channel low voltage analog sensor to Digital Lighting Management (DLM) interface. It communicates a single state of occupancy, however it may be driven by multiple physical sensors wired together. The LMIO-201 works in conjunction with an auxiliary DC power source.


  • Special Features: Works with analog occupancy sensors; sensors require power pack or power supply. Auxiliary relay for cycling power to connected sensors.
  • Voltage: 24VDC
  • Maximum current consumption: 20mA
  • DLM local network connection: 2 RJ45 ports
  • Interfaces existing analog occupancy sensors to DLM
  • Component of Digital Lighting Management integrated control systems

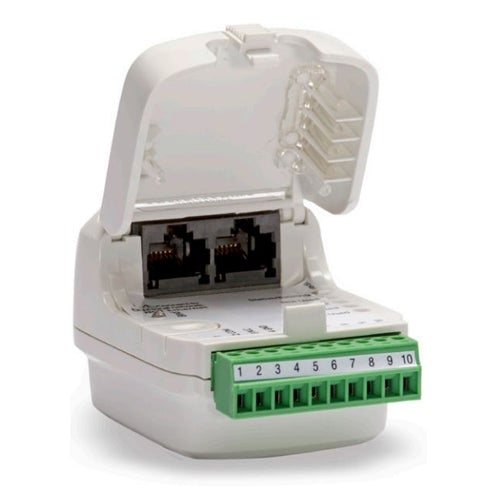

  • Hinged dust cover protecting two RJ45 ports
  • Allows access to DLM networking functionality including Normal Hours and After Hours parameters
  • Options for DIN rail or wallbox mounting
  • Typical Applications: Private and open offices, conference rooms, classrooms, training centers, lunch rooms and break rooms
  • Input ratings:
    • Input max. sink/source current: 1- 5 mA
    • Logic input signal voltage High: >18 VDC
    • Logic input signal voltage Low: < 2 VDC



Spec Sheet
