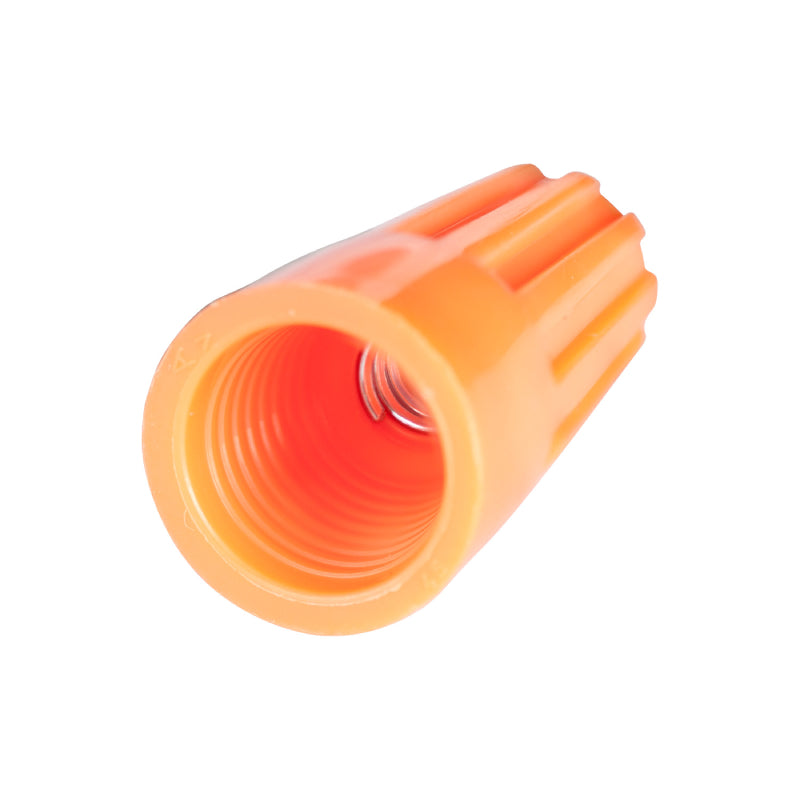

WireGard twist-on wire connectors are designed for general purpose applications requiring the connection of 2 or more copper wires. WireGard connectors feature a straight type Polypropylene shell with side knurling for an easy grip. The inner spring is zinc-plated to resist corrosion and has a tight square profile to make quick secure contact with wires and ensure connections with positive continuity.

 Features

• Color: Orange
• Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements
• Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
• Flame-retardant properties resist heat distortion up to 105 degrees Celsius/221 degrees Fahrenheit
• High-dielectric shell features deep skirt design to prevent exposure of bare wire
• Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
• Copper to copper connections only
• Inner spring is zinc-plated to resist corrosion
